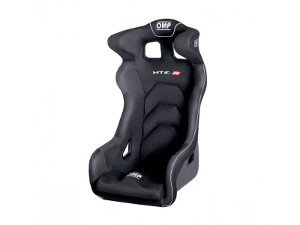

Once again, OMP has designed another professional looking seat with amazing functionality and support. The HTE-R Racing seat packs safety and style into a neat package, and is available in several sizes and materials to match any driver's needs.
The HTE-R comes constructed in either a fiberglass or carbon fiber shell. On top of a gel coating, the seat is upholstered in Airtex, a highly breathable material that reduces abrasion and keeps the driver cool. Just like many of the OMP seats, the HTE-R features removable back, base, and split leg cushions. The extended upper and lower bolsters provide amazing lateral support and reduce body fatigue. Less time focused on not sliding in your seat means more time focused on the race.
As far as functionality goes, the HTE-R has all corners covered. As with all OMP seats, the seat is HANS® compatible and FIA Homologated. With five different sizes and constructions, the HTE-R is very likely to have an option that works with your driving application. Please see the dimensions tab to check your vehicle's compatibility.
Detailed Specifications
Seat Name / Part Number: |
HTE-R HA/772E | HTE-R 400 HA/780E | HTE-R XL HA/771E | HTE-R CARBON HA/768E | HTE-R CARBON XL HA/779E |
Construction: | Fiberglass | Fiberglass | Fiberglass | Carbon Fiber | Carbon Fiber |
FIA Homologation # | FIA 8855/1999 | FIA 8855/1999 | FIA 8855/1999 | FIA 8855/1999 | FIA 8855/1999 |
HANS-Ready? | Yes | Yes | Yes | Yes | Yes |
Bottom-Mount? | No | No | No | No | No |
Side-Mount? | Yes | Yes | Yes | Yes | Yes |
A (External max width at shoulders) | 22 Inches | 22 Inches | 23 Inches | 21.5 Inches | 22 Inches |
B (Seat bottom to mid shoulders) | 22.5 Inches | 22.5 Inches | 24 Inches | 22 Inches | 23 Inches |
C (Seat bottom max external width) | 20.5 Inches | 20.5 Inches | 21 Inches | 18.5 Inches | 19 Inches |
D (Total height of seat back) | 34.5 Inches | 34.5 Inches | 36 Inches | 34.5 Inches | 35 Inches |
E (External max width of side bolsters) | 16.5 Inches | 16.5 Inches | 17.5 Inches | 15.5 Inches | 16.5 Inches |
F (Seat inner width (belt holes area) | 15.5 Inches | 15.5 Inches | 16.5 Inches | 14.5 Inches | 15.5 Inches |
G (Bottom length) | 19.5 Inches | 19.5 Inches | 21.5 Inches | 18.5 Inches | 19.5 Inches |
H (Internal width between side head protections) | 12.5 Inches | 12 Inches | 12 Inches | 13 Inches | 13 Inches |
I (External width between side head protections) | 20 Inches | 16.5 Inches | 19 Inches | 19.5 Inches | 19.5 Inches |
Weight (lbs) | 20.7 lbs | 22.5 lbs | 23.1 lbs | 14.6 lbs | 15 lbs |
