The QRT-R is the first seat to feature Sparco�s patented QRT ultra-light technology. This QRT Technology gives an unparalleled mechanical strength/weight ratio for fiberglass composite racing seats. QRT Technology gives an average weight savings of 7lbs (up to 10lbs +) per shell. The main benefit is that QRT-R seat approaches the weight of a carbon fiber seat at a price of a fiberglass seat. The QRT-R is the lightest "Medium/Large" size fiberglass seat, the shell weighs only 9.9 lbs (15 lbs in full trim). The QRT-R has a unique CAD design that features a lower seating position that can fit a larger/taller driver with the exterior dimensions that can fit into smaller vehicles. The QRT-R is FIA approved.

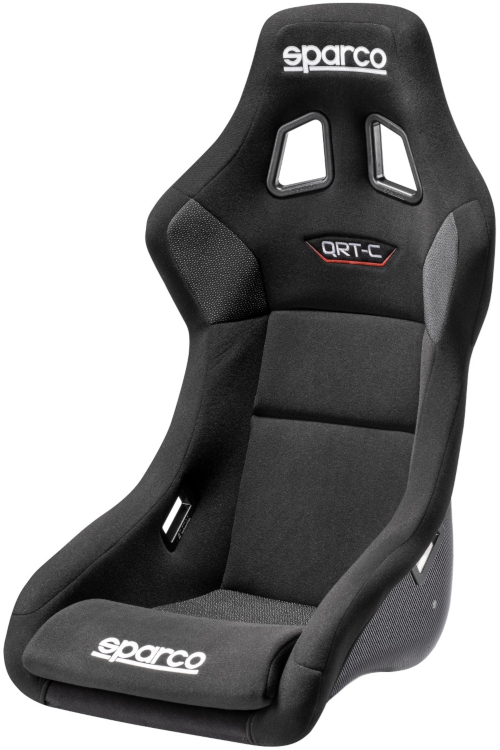

The QRT-C is the newest version of the QRT-R seat range, with the added benefit of carbon fiber outer layers. The QRT-C has a unique CAD design that features a lower seating position that can fit a larger/taller driver with the exterior dimensions that can fit into smaller vehicles. The QRT-C is FIA approved.
The QRT Performance seat represents the luxury evolution of the QRT-R race seat. The QRT Performance uses the same FIA race shell as the QRT-R race seat but is covered in Italian Leather and Alcantara. The seats are handstitched in the Sparco OEM factory in Torino Italy. The QRT Performance has a unique CAD design that features a lower seating position that can fit a larger/taller driver with the exterior dimensions that can fit into smaller cockpits. The QRT Performance can hold the driver during extreme lateral forces, but is also comfortable for long road trips.
QRT Technology gives an unparalleled mechanical strength/weight ratio for fiberglass composite racing seats. QRT Technology save 30% of the weight when compared to standard fiberglass technology. The main benefit is that QRT seats come close to the weight of a carbon fiber seat at the price of a fiberglass composite seat.
Sparco QRT-R side mounts are specifically designed for the QRT-R and QRT Performance seats. The QRT-R side mounts are designed for the unque bottom shape of the QRT-R seats. Mutliple side holes allow the QRT-R seats to be mounted low in the vehicle and with the proper amount of recline or rake. Available in black.
Optional side mount hardware kit (50002) provides fasteners to mount the seat to the sidemount bracket, the sidemount bracket to a slider, the slider to a custom base bracket and inlcudes the following:
Detailed Specifications - Sparco QRT (R, C, and Performance)
QRT-R | QRT-C | QRT Performance | |
Construction: | QRT | Carbon Fiber/QRT | QRT |
FIA Homologated? | Yes (CS.094.04) | Yes (CS.094.04) | Yes (CS.094.04) |
Driver Size: | L | L | L |
HANS-Ready? | Yes | Yes | Yes |
Bottom-Mount? | No | No | No |
Side-Mount? | Yes | Yes | Yes |
A* | 15.8 | 15.8 | 15.8 |
X* | 11.1 | 11.1 | 11.1 |
B* | 22.1 | 22.1 | 22.1 |
C* | - | - | - |
D* | 19.7 | 19.7 | 19.7 |
Z* | 15.4 | 15.4 | 15.4 |
E* | 17.2 | 17.2 | 17.2 |
F* | 37.1 | 37.1 | 37.1 |
G* | 7.5 | 7.5 | 7.5 |
Weight (lbs) | 17.2 | 14.2 | 17.7 |
*Dimensions in Inches--Use with line drawing above.
